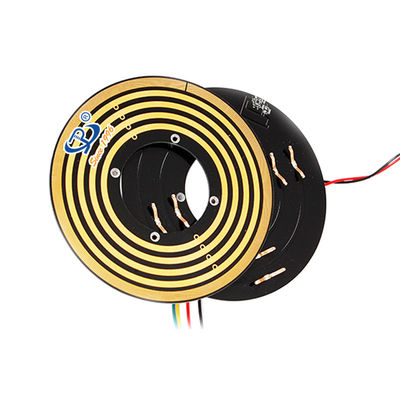

40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine

  • 40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine
Tempat asal Cina
Nama merek JINPAT
Sertifikasi ISO/CE/RoHS/UL
Nomor model LPKS040-0501
Kuantitas min Order 10 buah
Harga negotiable

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Sirkuit 5 sirkuit Peringkat tegangan 24v
Peringkat saat ini 1a per sirkuit Bahan kontak Logam mulia
Kecepatan kerja 0~150rpm Diameter Dalam Φ40mm
Kekuatan dielektrik ≥300V@50Hz Bahan perumahan FR-4
Resistensi isolasi 100MΩ@100VDC Panjang kawat Kawat Stator: 300mm Kawat Rotor: 300mm
Suhu Operasional -20 ° C ~+60 ° C. Kelembaban ≤60%RH
Kecepatan Putar Tinggi Metode instalasi Papan PCB dipasang pada flensa
Ketebalan 6mm
Menyoroti

40 mm Inner Diameter Pancake Slip Ring

,

5 Circuits Flat Slip Ring

,

24V Voltage Rating LPK Series Slip Ring
Deskripsi Produk
ID 40 mm 5 Circuits Flat Slip Ring with Optional Voltage for Coiling Machine
Product Overview

The LPK series pancake slip rings by JINPAT feature an ultra-thin 6mm design, specifically engineered for rotation systems with limited vertical installation space. The central hole design with surrounding copper ring and brush contact maximizes space efficiency.

Key Features
  • High rotating speed capability
  • Reliable contact with lightweight construction
  • Exceptionally low physical noise operation
  • Continuous 360° rotation for power and signal transmission
  • Stable connection without interference or drops
Product Advantages
  • Pre-configured photoelectric encoder option
  • Available with solid or hollow shaft configurations
  • Fast delivery times
  • Custom engineering solutions available
Technical Specifications
Electrical Specifications Mechanical Specifications
Circuits 5 circuits × 1A Working Speed 0-150 rpm
Working Voltage 24V Contact Material Nobel Metal
Dielectric Strength ≥300V@50Hz Housing Material FR-4
Insulation 100MΩ@100VDC Wire Length Stator/Rotor: 300mm each
Environmental Specifications Additional Information
Temperature Range -20°C to +60°C Installation Method PCB board mounts to customer's flange
Humidity ≤60% RH Inner Diameter Φ40mm
Industrial Applications
  • Packaging and wrapping machinery
  • Semiconductor handling systems
  • Industrial automation equipment
  • Exhibit display machinery
  • Medical diagnostic equipment
  • Rotary index tables
  • Process control systems
40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine 0
40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine 1
40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine 2
40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine 3
