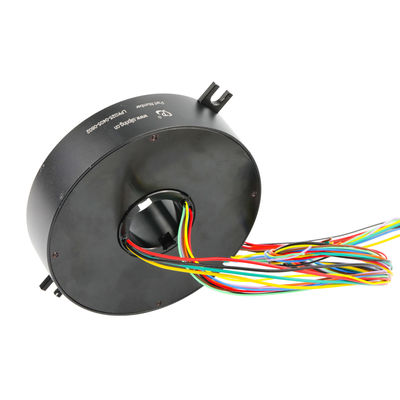

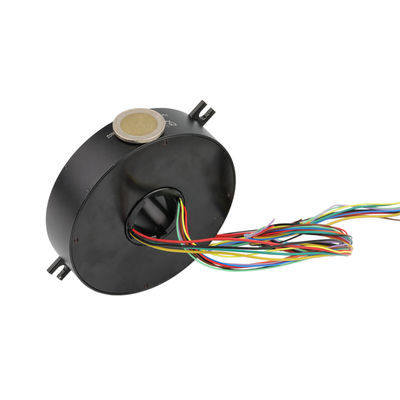

4/8 Circuits Pancake Slip Ring with 220VDC/AC Voltage Rating and 5A/2A Current Rating

  • 4/8 Circuits Pancake Slip Ring with 220VDC/AC Voltage Rating and 5A/2A Current Rating
  • 4/8 Circuits Pancake Slip Ring with 220VDC/AC Voltage Rating and 5A/2A Current Rating
Tempat asal Guangdong, Tiongkok
Nama merek JINPAT
Nomor model LPK025-0405-0802
Kuantitas min Order 1
Harga $210

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Sirkuit 4/8 sirkuit Peringkat tegangan 220VDC/AC atau lebih tinggi
Peringkat saat ini 5A/2A per sirkuit Bahan kontak Logam mulia
Kecepatan kerja 0 ~ 50rpm Kekuatan dielektrik ≥1000V@50Hz (Arus) ≥500V@50Hz (sinyal)
Resistensi isolasi 500MΩ@500VDC(Arus) 100MΩ@300VDC(sinyal) Panjang kawat Kawat Stator: 300mm Kawat Rotor: 300mm
Suhu Operasional -20 ° C ~+60 ° C. Kelembaban ≤60%RH
Peringkat Ip IP54 Bahan perumahan Oksidasi Hitam dari Paduan Aluminium
Ketebalan 6mm Jenis kontak Logam Nobel
Metode instalasi Stator dipasang pada poros yang disediakan oleh pelanggan
Menyoroti

4/8 Circuits Pancake Slip Ring

,

220VDC/AC Voltage Rating Slip Ring

,

5A/2A Current Rating Pancake Slip Ring
Deskripsi Produk
Wide Range Temperature Working Pancake Slip Ring Electrical Contacts and Contact Materials
Bargain Price Only in Alibaba

The LPK series is a group of Pancake Slip Rings manufactured by JINPAT with thickness as small as 6mm. Designed exclusively for rotation systems with limited vertical installation space, these slip rings feature copper ring and brush contacts surrounding a central hole for maximum space efficiency.

Key Features
  • High rotating speed capability
  • Reliable contact with lightweight design
  • Extremely low physical noise operation
  • Continuous 360° rotation for power and signal transmission
  • No interference or connection drop during operation
Product Advantages
  • Ready-made photoelectric encoder option
  • Choice of solid or hollow shafts
  • Rapid delivery available
  • Custom solutions tailored to your needs
Technical Specifications
Electronic & Electrical Mechanical
Circuits 4 circuits × 5A / 8 circuits × 2A Working Speed 0-50rpm
Working Voltage 220VDC/AC Contact Nobel Metal
Dielectric Strength ≥1000V@50Hz (Current) ≥500V@50Hz (Signal) Housing Oxidation Black of Aluminum Alloy
Insulation 500MΩ@500VDC (Current) 100MΩ@300VDC (Signal) Wire Length Stator Wire: 300mm / Rotor Wire: 300mm
Environment Remarks
Temperature -20°C to +60°C Installation Method Stator fixed on customer-provided spindle
Humidity ≤60%RH
IP Rating IP54
Main Applications
  • Packaging and wrapping machinery
  • Semiconductor handling systems
  • Industrial machinery
  • Exhibit display machinery
  • Medical equipment
  • Rotary index tables
  • Process control equipment
4/8 Circuits Pancake Slip Ring with 220VDC/AC Voltage Rating and 5A/2A Current Rating 0
Company Advantages
  • 12,000+ square meter facility with 500+ employees
  • National High and New Technology award recipient with 69 patents
  • Global partnerships with renowned enterprises
  • 10,000+ successful designs across civil, military, commercial and industrial applications
  • Established in 1996 with 20+ years of production and R&D experience
  • Free custom slip ring solutions for diverse equipment requirements
  • Fast delivery service
4/8 Circuits Pancake Slip Ring with 220VDC/AC Voltage Rating and 5A/2A Current Rating 1 4/8 Circuits Pancake Slip Ring with 220VDC/AC Voltage Rating and 5A/2A Current Rating 2 4/8 Circuits Pancake Slip Ring with 220VDC/AC Voltage Rating and 5A/2A Current Rating 3 4/8 Circuits Pancake Slip Ring with 220VDC/AC Voltage Rating and 5A/2A Current Rating 4
Frequently Asked Questions
What do we do?

We specialize in developing, designing, and manufacturing high quality slip rings, offering comprehensive solutions for rotating systems.

What is a slip ring?

A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. It enhances mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires in movable joints.

What kinds of slip rings do we offer?
  • Electrical Slip Rings (capsule, through-bore, miniature)
  • Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
How do I choose a slip ring?

Selection requires details about your application's operating parameters including total circuits, voltage and current per circuit, operating speed, and mounting type. For custom solutions or selection assistance, contact our engineering team.

Do you offer custom slip rings?

Yes, our engineers develop perfect custom solutions tailored to your specific requirements. Contact us to discuss your application needs.
