48VAC 4-Wire Miniature Slip Ring 1A Current 100 RPM Speed

  • 48VAC 4-Wire Miniature Slip Ring 1A Current 100 RPM Speed
  • 48VAC 4-Wire Miniature Slip Ring 1A Current 100 RPM Speed
Tempat asal Guangdong, Cina
Nama merek JINPAT
Nomor model LPMS-04A
Kuantitas min Order 1
Harga $18.50

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Nomor Sirkuit 4 Peringkat saat ini 1a
Voltase 48VAC Kecepatan kerja 0~100 RPM
Suhu kerja -20~+60℃ Kebisingan listrik ≤15mΩ
Bahan kontak Logam mulia Bahan perumahan baja tahan karat
Ukuran kawat 30# tembaga berlapis perak ul, teflon Panjang kawat timbal Rotor:250mm; Rotor: 250mm; Stator:250mm Stator: 250mm
Tingkat Perlindungan IP54 Gaya Cincin Selip Kapsul
Jenis Aksesori Elektronik Jenis kontak Kontak emas
Warna Kawat Kode warna
Menyoroti

48VAC miniature slip ring

,

4-wire slip ring 1A current

,

capsule slip ring 100 RPM
Deskripsi Produk
48 VAC 4-Wire Super Miniature Slip Ring with Light Small Figure Illumination Electrical Contacts
Product Description
The LPMS-04A super miniature slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating parts. This standard off-the-shelf unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.
Specifications
Circuits 4
Current Rating 1A
Voltage 48 VAC
Electrical Noise ≤15mΩ
Working Speed 0~100 RPM
Contact Precious metal
Housing Stainless steel
Wire Size 30# silver plated copper UL, Teflon
Lead Wire Length Rotor:250mm; Stator:250mm
Working Temperature -20~+60℃
Protection Grade IP54
Main Applications
  • Electric devices
  • Medical facilities
  • Industrial machinery
  • LED industry
  • Medical equipment
  • Process control equipment
Product Images

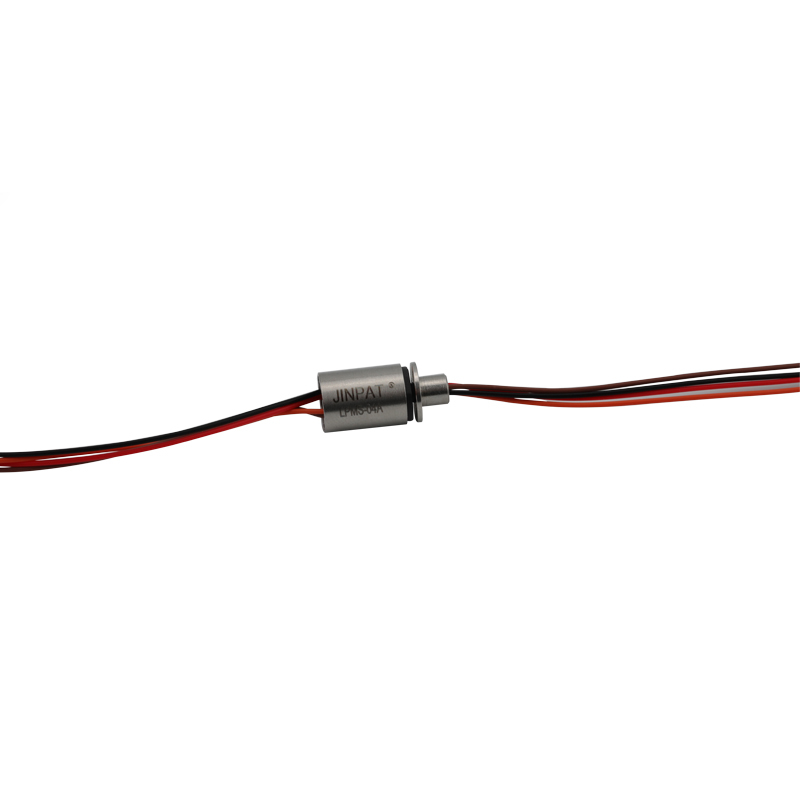

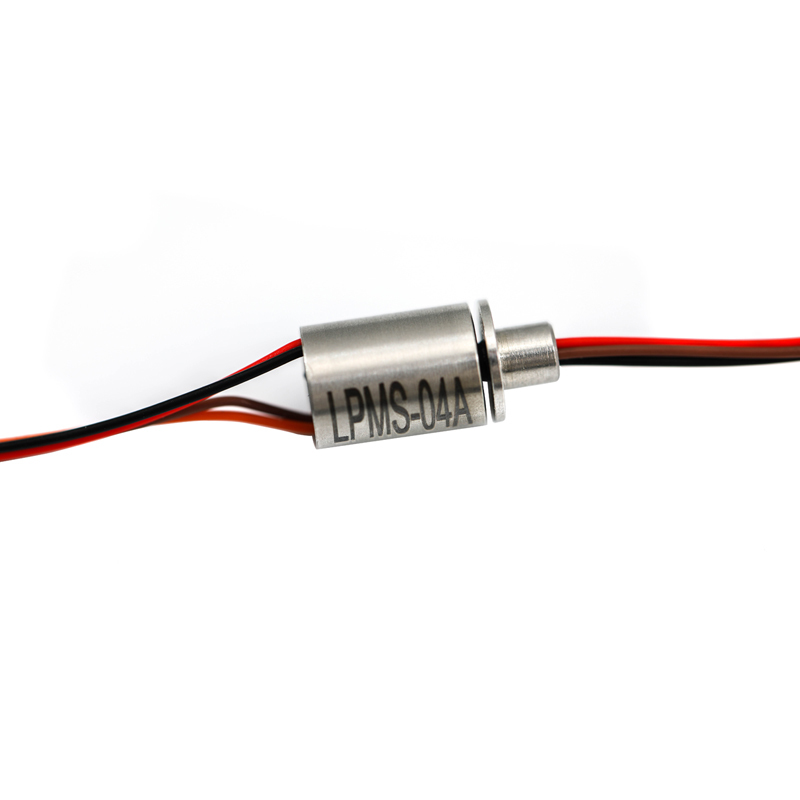

48VAC 4-Wire Miniature Slip Ring 1A Current 100 RPM Speed 0 48VAC 4-Wire Miniature Slip Ring 1A Current 100 RPM Speed 1
Our Advantages
  • 12,000 square meter production facility with 500+ employees
  • Recognized as "National High and New Technology" enterprise with 69 patents
  • Global partnerships with renowned enterprises and agents worldwide
  • Over 10,000 successful designs for civil, military, commercial and industrial applications
  • Established in 1996 with 20+ years of production and R&D experience
  • Free custom slip ring solutions for various equipment requirements
  • Fast delivery service
Welcome to JINPAT Electronics 48VAC 4-Wire Miniature Slip Ring 1A Current 100 RPM Speed 2
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires.
What kinds of slip rings do we offer?
  • Electrical Slip Rings (capsule, through-hole, miniature, etc.)
  • Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency, etc.)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom/modified solutions.
Do you offer custom slip rings?
Yes, our engineers can develop perfect solutions for your specific needs. Contact us to discuss custom requirements.
