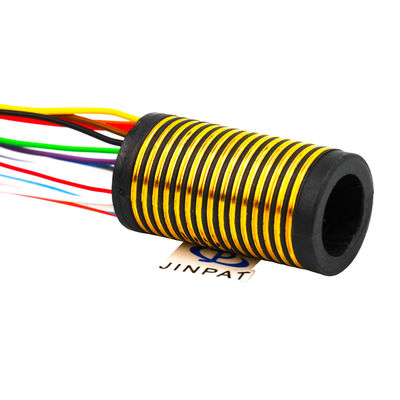

15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission

  • 15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission
Tempat asal Guangdong, Tiongkok
Nama merek JINPAT
Nomor model LPS-15
Kuantitas min Order 1
Harga $100

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Kecepatan maksimum 100 rpm Jumlah sirkuit 15
Voltase 240 VAC/DC Peringkat saat ini 2a
Kisaran Suhu -20 ℃ hingga +60 ℃ Kelembaban kerja 60% RH atau lebih tinggi
Bahan kontak Emas ke Emas Ukuran timbal 28 # tembaga berlapis perak
Panjang Timbal Standar 250 mm (9,843 inci) Kekuatan dielektrik ≥200 vac @50Hz, di antara setiap sirkuit
Bahan Tubuh Plastik Rekayasa Resistensi isolasi 50 mΩ @ 500 VDC
Kebisingan listrik ≤35mΩ Kecepatan operasi 0-100rpm
Transfer bandwidth Tinggi
Menyoroti

15 Circuit Slip Ring

,

100 rpm Separate Slip Ring

,

250mm Lead Length Rotary Electrical Connector
Deskripsi Produk
15 Circuit Smooth Running Low Electrical Noise Separate Slip Ring
Gold to Gold Contact for Electrical Contacts Contact Materials

Separate slip ring consists of two parts: rotor and brush block. The rotor part can have a through bore type, making it suitable for space-limited installations. This slip ring can use pins instead of lead wires to handle larger currents.

The LPS-15 is a standard unit featuring gold contacts at the rotary interface with color-coded lead wires on both stator and rotor for simplified electrical connections.

Key Advantages
  • 250mm standard lead length
  • Gold to gold contact materials for extended lifespan
  • Flexible, color-coded, silver-plated wiring
  • Capable of transmitting both power and signal data
  • High bandwidth transfer capability
Primary Applications
  • Indexing tables
  • CCTV pan/tilt camera mounts
  • Robotics and rotary sensors
  • Emergency illumination equipment
  • Exhibit and display equipment
  • Medical equipment
  • Aviation, military, and instrumentation
  • Miniature wire-rolling machines
Customization Options
  • Circuits & current capacity
  • Operational speed
  • Dimensions
  • Lead wire length
  • Contact and housing materials
Technical Specifications
Parameter Specification
Operating Speed 0-100 rpm
Number of Circuits 15
Voltage 240 VAC/DC
Current Rating 2A
Temperature Range -20℃ to +60℃
Working Humidity 60%RH or higher
Contact Material Gold to Gold
Lead Size 28 AWG silver-plated copper
Lead Length Standard 250 mm (9.843 inch)
Dielectric Strength ≥200 VAC @50Hz between circuits
Body Material Engineering plastic
Insulation Resistance 50 MΩ @ 500 VDC
Electrical Noise ≤35mΩ
15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission 0 15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission 1 15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission 2 15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission 3
