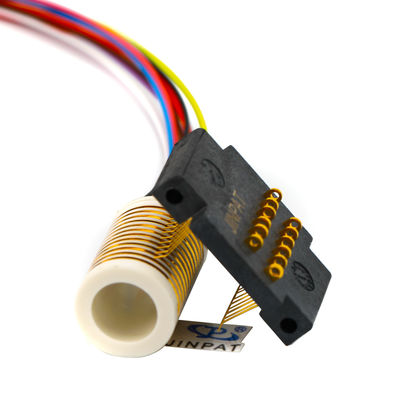

Compact 12 Circuits Separate Slip Ring with 360° Continuous Rotation for Smooth Power Transfer

  • Compact 12 Circuits Separate Slip Ring with 360° Continuous Rotation for Smooth Power Transfer
Tempat asal Cina
Nama merek JINPAT
Sertifikasi ISO/CE/RoHS/UL
Nomor model LPS-12
Kuantitas min Order 10 buah
Harga negotiable

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Jumlah sirkuit 12 Kecepatan operasi 0-100rpm
Voltase 240 VAC/DC Peringkat saat ini 1-3A
Kisaran Suhu -20 ℃ hingga +60 ℃ Kelembaban kerja 60% RH atau lebih tinggi
Bahan kontak Emas ke Emas Ukuran timbal 28 # tembaga berlapis perak
Panjang Timbal 250 mm (9.843inch) Kekuatan dielektrik ≥200 vac @50Hz, di antara setiap sirkuit
Bahan Tubuh Logam mulia Resistensi isolasi 50 mΩ @ 500 VDC
Kebisingan listrik 30 MΩmin Kecepatan Maks 200 rpm terus menerus
Rotasi 360 ° terus menerus
Menyoroti

12 Circuits Separate Slip Ring

,

360° Continuous Rotation Slip Ring

,

Compact Separate Slip Ring
Deskripsi Produk
Compact LPS-12 Gold Separate Slip Ring - 12 Circuits
This high-quality slip ring unit is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating structures. Also known as rotary electrical interfaces or electrical rotary joints, these components enhance system capability, simplify design, and prevent damage during rotation.
Key Features
  • 12-circuit standard model with gold contacts
  • Operates at speeds up to 200 rpm continuously
  • 250mm standard lead length with color-coded wiring
  • Compatible with various data bus protocols
  • Available in sealed configurations
  • Precision ball bearings for extended service life
  • 90° V-groove design for smooth operation
Performance Advantages
  • Minimal torque requirements for system efficiency
  • Compact footprint for space-constrained applications
  • Exceptionally smooth rotation characteristics
  • Low electrical noise for signal integrity
  • 360° continuous rotation capability
  • High bandwidth transfer capacity
  • Rapid shipping available for urgent requirements
Technical Specifications
Parameter Value
Operating Speed 0-100 rpm
Number of Circuits 12
Voltage Rating 240 VAC/DC
Current Rating 1-3A
Temperature Range -20℃ to +60℃
Contact Material Gold to Gold
Dielectric Strength ≥200 VAC @50Hz
Insulation Resistance 50 MΩ @ 500 VDC
Typical Applications
  • Electrical test equipment and instrumentation
  • Manufacturing and process control systems
  • Robotics and rotary sensor applications
  • CCTV pan/tilt camera mechanisms
  • Medical and aviation equipment
  • Exhibit/display rotation systems
  • Custom and OEM machinery
Compact 12 Circuits Separate Slip Ring with 360° Continuous Rotation for Smooth Power Transfer 0 Compact 12 Circuits Separate Slip Ring with 360° Continuous Rotation for Smooth Power Transfer 1
Manufacturer Information
JINPAT Electronics specializes in high-quality slip ring solutions with:
  • 12,000+ square meter production facility with 500+ employees
  • 69 patents and National High-Tech Enterprise recognition
  • 20+ years of R&D and manufacturing experience since 1996
  • 10,000+ successful designs across commercial and military applications
  • Global partnerships with leading enterprises
  • Custom engineering solutions available
Compact 12 Circuits Separate Slip Ring with 360° Continuous Rotation for Smooth Power Transfer 2 Compact 12 Circuits Separate Slip Ring with 360° Continuous Rotation for Smooth Power Transfer 3
Frequently Asked Questions
What is a slip ring?
A slip ring is an electromechanical device that enables power and signal transmission between stationary and rotating components, eliminating damage-prone dangling wires while improving system performance.
Product Selection Guidance
For optimal slip ring selection, consider your application's circuit requirements, voltage/current specifications, operating speed, and mounting configuration. Our engineering team offers complimentary consultation for custom solutions.
