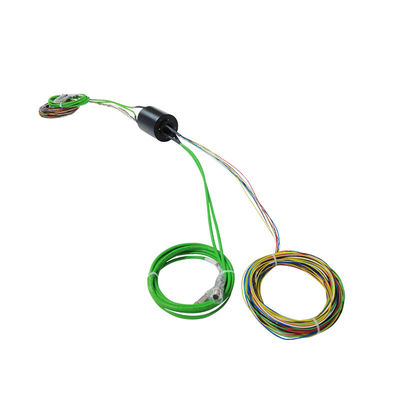

6A Current 0~10rpm Rotary Slip Ring with φ38mm Vias for Automation Equipment

  • 6A Current 0~10rpm Rotary Slip Ring with φ38mm Vias for Automation Equipment
Tempat asal CINA
Nama merek JINPAT
Sertifikasi ISO9001.ISO14000.CE.UL.FCC.RoHS
Nomor model LPT038-0706-02PE-02E2
Kuantitas min Order 1 pcs
Harga negotiable
Kemasan rincian Standar/atas permintaan
Waktu pengiriman 2 minggu aro
Menyediakan kemampuan 100 unit/Minggu

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Nama Produk Slip Peralatan Otomatisasi LPT038-0706-02PE-02E2 Sirkuit 7 Sirkuit*6A 2*PE+2*100M ETHERNET
Voltase 480VAC Bahan perumahan Paduan Aluminium
Kecepatan berputar 0 ~ 10rpm Suhu kerja -20 ° C ~+60 ° C.
Bahan kontak Logam mulia/emas ke emas Kekuatan dielektrik 1500VAC@50Hz (Power), 100Vac@50Hz (sinyal)
Peringkat IP IP51 （Instalasi Horizontal）
Menyoroti

6A Current Slip Ring

,

0~10rpm Rotary Slip Ring

,

φ38mm Vias Automation Equipment Slip Ring
Deskripsi Produk
Automation Equipment Slip Ring-LPT038-0706-02PE-02E2
Electronic & Electrical
6A Current 0~10rpm Rotary Slip Ring with φ38mm Vias for Automation Equipment 0
Product Specifications
Attribute Value
Circuits 7 circuits*6A 2*PE+2*100M Ethernet
Rating Voltage 480VAC
Rotating Speed 0~10rpm
Contact resistance fluctuation value ≤70mΩ(50rpm)
Inner diameter(mm) φ38.1mm
Contact Material Precious Metals/Gold To Gold
Housing Material Aluminum Alloy
Working Temperature -20°C~+60°C
Working Humidity ≤60%RH
IP Rating IP51(Horizontal installation)
Key Features & Advantages
  • Supports 7 current transmission channels, each rated at 6A, and a rated operating voltage of 480V AC
  • Supports two 100M Ethernet transmission channels, using M12-D connectors
Structural Features
  • φ38mm vias reserved in the center
  • Compact structure and size, saving installation space
  • Cable outlets at both ends, 10m cable length
  • Dynamic fluctuation resistance ≤10mΩ
For more details about this slip ring product, please contact JINPAT. We provide customized solutions to meet your specific requirements.
