6 Circuit 15A Hollow Bore Slip Ring 80mm Hole 240V

  • 6 Circuit 15A Hollow Bore Slip Ring 80mm Hole 240V
  • 6 Circuit 15A Hollow Bore Slip Ring 80mm Hole 240V
Place of Origin Guangdong, China
Nama merek JINPAT
Model Number LPT080-0615
Minimum Order Quantity 1
Harga $182.60-220

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Circuit Number 6 Current Rating 15A
Voltage 240 VAC/DC Working Speed 0~300 rpm
Working Temperature -20~+60℃ Hole Diameter 80 mm
Dielectric Strength 1000V@50Hz between circuits Insulation ≥500MΩ@500VDC
Contact Material Precious metal Housing Material Aluminum alloy
Wire Length 300mm (rotor), 300mm (stator) Humidity ≤60%RH
Protection Grade IP50 Ethernet Rate 10Mbps/100Mbps/1000Mbps
USB Version USB2.0
Menyoroti

6 circuit hollow bore slip ring

,

15A through hole slip ring

,

80mm slip ring 240V
Deskripsi Produk
Hollow Bore Slip Ring - 6 Circuits 15A with 80mm Hole
Key Specifications
Attribute Value
Type Electronic Accessories
Circuit Number 6
Current Rating 15A
Voltage 240 VAC/DC
Working Speed 0-300 RPM
Working Temperature -20°C to +60°C
Hole Diameter 80 mm
Product Overview
LPT slip rings are through-hole slip rings designed for reliable power and signal transmission in rotating systems. The center hole can accommodate drive shafts or gas-liquid passages, with optional integration of high frequency, fiber, encoder, waveguide, and other connections.
Key Features
  • Transmits both analog and digital signals
  • Mixed transmission of power and signals including:
    • Ethernet (10Mbps/100Mbps/1000Mbps)
    • Industrial Ethernet protocols
    • HD video signals (SDI, LVDS)
    • Serial communication (RS232, RS485, RS422)
    • USB 2.0
    • Industrial Fieldbus protocols
    • Sensor signals (thermal resistance, thermocouple, strain gauge)
  • Long service life with maintenance-free operation
  • Easy installation process
Technical Specifications
Circuits 6
Current Rating 15A
Voltage 240 VAC/DC
Dielectric Strength 1000V@50Hz between circuits
Insulation ≥500MΩ@500VDC
Hole Diameter 80 mm
Working Speed 0-300 RPM
Contact Material Precious metal
Housing Material Aluminum alloy
Wire Length 300mm (rotor and stator)
Working Temperature -20°C to +60°C
Humidity ≤60% RH
Protection Grade IP50
Applications
  • Industrial automation equipment
  • Medical equipment
  • Wind power systems
  • Test and measurement equipment
  • Robotics and turntable systems
  • Amusement and display equipment
  • High-speed railway systems
  • Packaging machinery
  • Marine and offshore equipment
  • Construction machinery
  • Semiconductor handling systems
  • Cable reels
Product Images

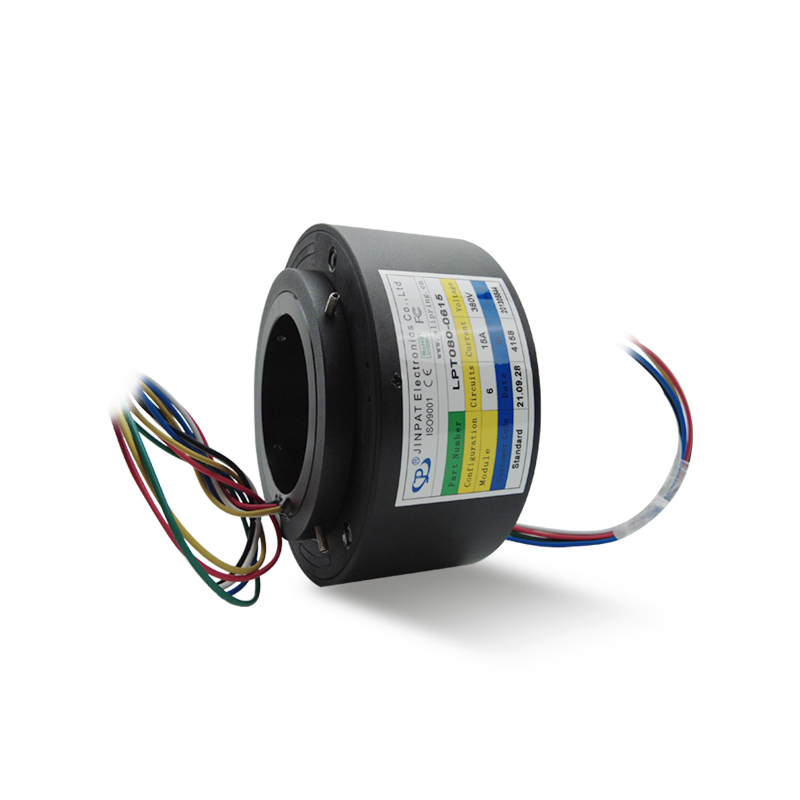

6 Circuit 15A Hollow Bore Slip Ring 80mm Hole 240V 0

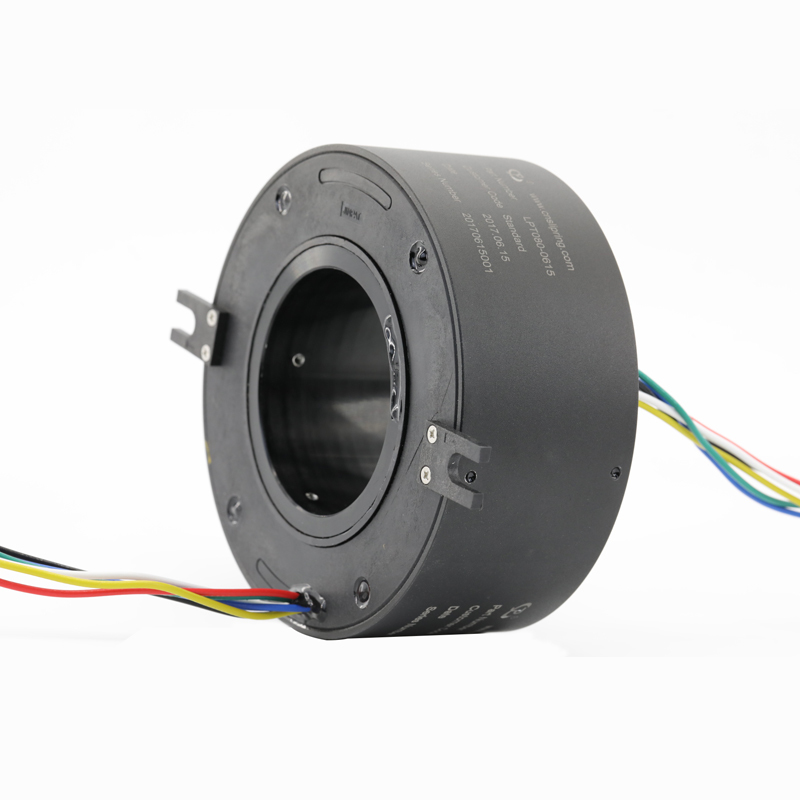

6 Circuit 15A Hollow Bore Slip Ring 80mm Hole 240V 1
Manufacturer Advantages
  • 12,000 square meter production facility with 500+ employees
  • Recognized as National High and New Technology enterprise with 69 patents
  • 20+ years of experience since 1996
  • 10,000+ successful designs for civil, military, commercial and industrial applications
  • Custom slip ring solutions available
  • Fast delivery times
